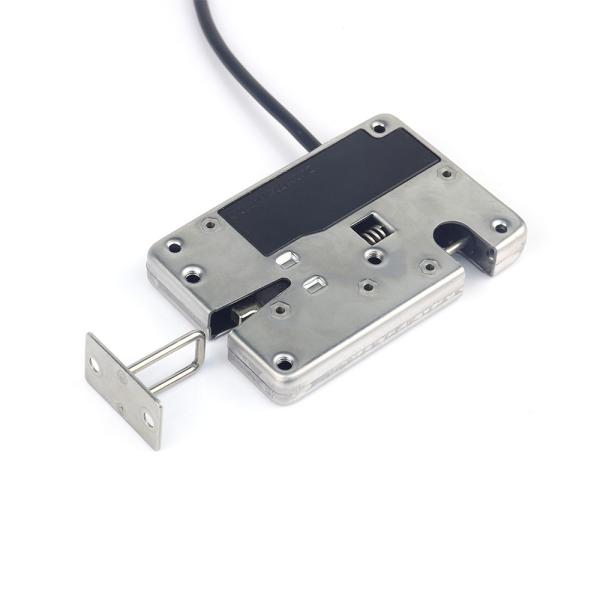

Keyless 430 SUS DC8V Waterproof Electronic Lock Magnet Control
Product parameters:
| Model | KR-S98A |
| Size | 98*66*13.3 mm |
| Name | Magnet Access Control Lock |
| Weight | 175g |
| The material | 430 stainless steel+Zinc alloy lock tongue |
| Working voltage | DC8V~DC24V |
| Working current | 100mA@12V |
| Maximum power | 1.2W |
| Response time | Less than 300ms |
| Working temperature | -40℃ ~ +65℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 4KG~50KG |
| Test | Salt spray testing 48 hours |
| Usage | storage locker; gym locker; vending machine; deposit locker |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. Support 12V & 24V.Driven by the motor, More stable and Lower power consumption
2. Lock housing is made of deactivated 430 stainless steel, anti-force performance is 250kgs
3. IP66 Waterproof. All electronic parts are protected into the sealed ABS box
4. Thrust can be adjusted, built-in push block helps push the door
5. Lock hook detection function
6. Can be unlocked manually by mechanical emergency lever in case of power failure
7. AWG24 wires with PVC protecting tube
8. Support customizing wires and connectors
Product Details:
Product Applications:

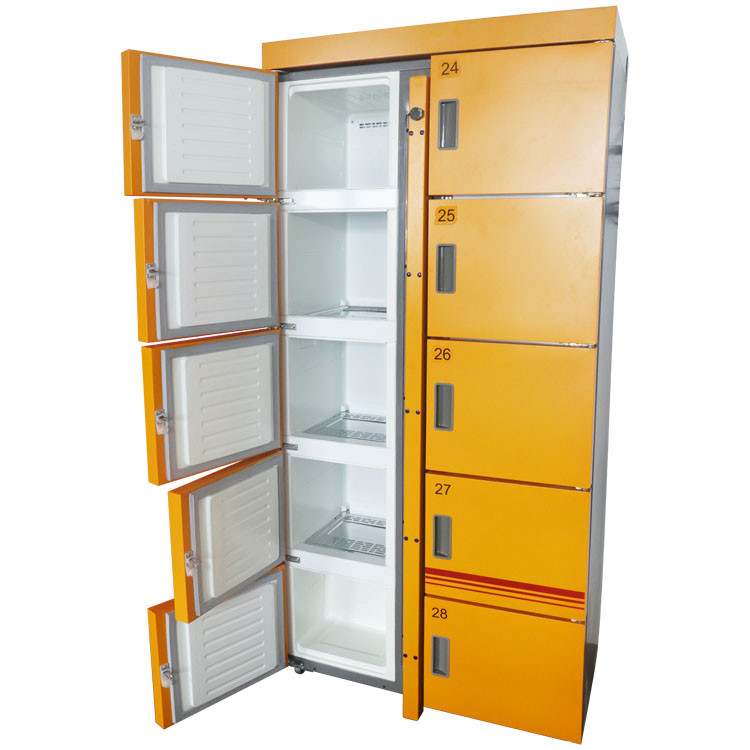

Our product KR-S98A electronic waterproof cabinet lock is applied in gym cabinets, refrigerator, express cabinets, sauna locker, etc.
