550lbs Waterproof Electronic Lock , 1.2W 12 Volt Electric Cabinet Lock
Product parameters:
| Model | KR-S98A |
| Size | 98*66*13.3 mm |
| Name | 12V Waterproof Electric Lock |
| Weight | 175g |
| The material | 430 stainless steel+ABS+PC |
| Working voltage | DC8V~DC24V |
| Working current | 100mA@12V |
| Maximum power | 1.2W |
| Response time | Less than 300ms |
| Working temperature | -40℃ ~ +65℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 4KG~50KG |
| Test | Salt spray testing 48 hours |
| Application range | storage cabinet; express locker; fresh locker; gym locker |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. Motor driven, Low power consumption and more stable,support 12V & 24V.
2. Anti-force performance: 250kgs, lock shells are made from deactivated 430 stainless steel.

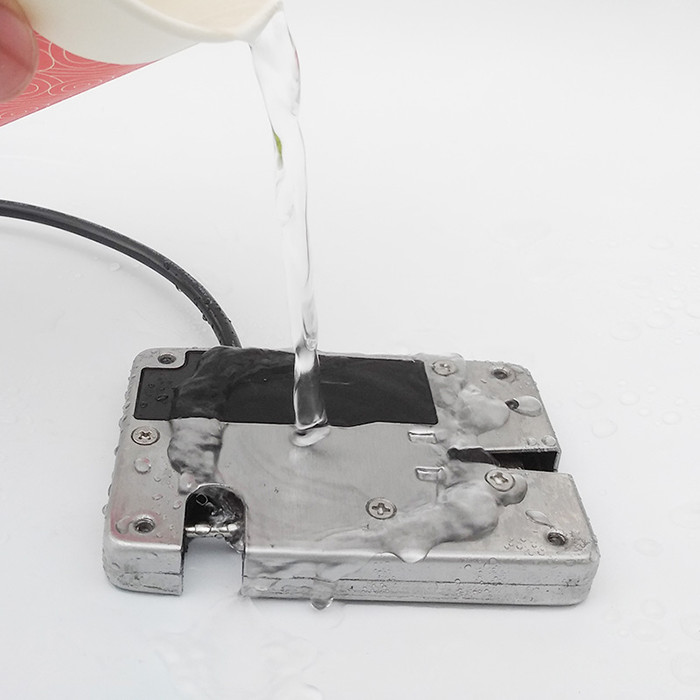

3. IP rating is IP66. All electronic parts are protected in the sealed ABS box. Can be waterproof.
4. Built-in push block to help push the door. Push force can be adjusted.
5. AWG24 wires with PVC protecting tube.
6. Mechanical emergency lever, can be unlocked manually in case of power failure.
7. Lock hook detection function.
8. Support customizing wires and terminals
Product Details:
How does it work?
Product Applications
Our products KR-S98A electronic cabinet lock is used in freeze cabinets, vending machine, centralized control ark express cabinets, gym cabinets, storage cabinets, etc.
Hot Tag: Electronic Waterproof Cabinet Lock, Wholesale, IP66, Customizable
|
|
