2.4A Electric Operated Locker Locks , DC24V Solenoid Latch Lock
Product parameters:
| Model | KR-S97 |
| Size | 97*66*13.3 mm |
| Product Name | 24V Coin Operated Lock |
| Weight with lock hook | 120g |
| The material of lock body | ABS+PC |
| The material of lock bolt | Zinc alloy nickel plating |
| Working voltage | 12V/24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Usage | Lockers, vending machines, logistics cabinets, gym cabinets, etc. |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. Solenoid driven, support 12V & 24V voltage.
2. Anti-force performance as 80kgs, lock shells are made of deactivated 304 stainless steel.
3. Omron micro detective switch from Japan, working life as 500,000 times.
4. IP66. All electronic parts are protected in the sealed ABS box, can be waterproof.
5. Mechanical emergency lever, can be unlocked manually in case of power failure.
6. AWG24 wires with PVC protecting tube.
7. Customers can customize wires and connectors.

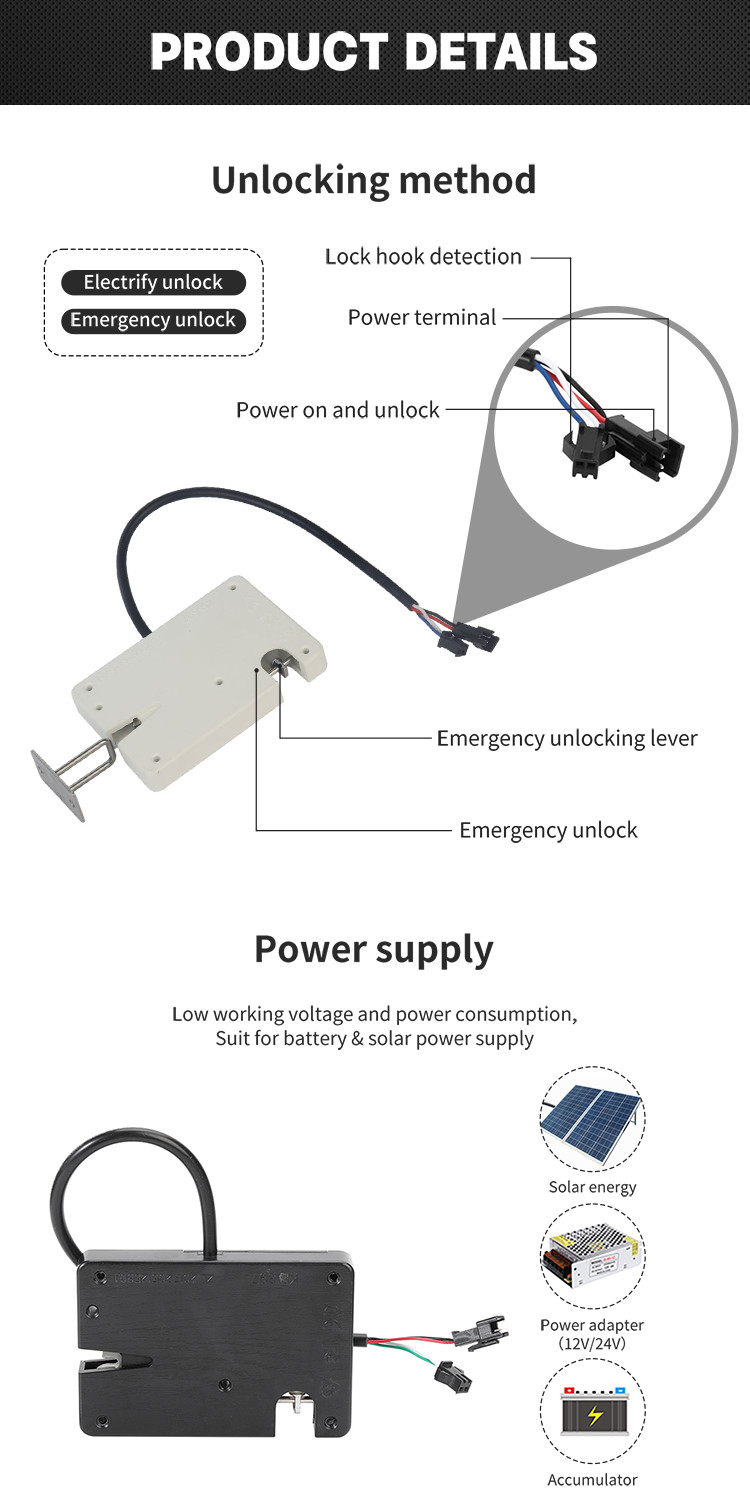

Product Details:
Different Lock Hook Options:
Model | Base | Thickness | Height | Weight |
Hook A | Flat base | 3.0mm | 30mm | 11.0g |
Hook E | Arch base | 3.0mm | 31.5mm | 11.4g |
Product Applications:
Our product KR-S97 electronic locker locks are used in parcel cabinets, express cabinets, vending kiosk locker, postal cabinets, storage cabinets, etc.
