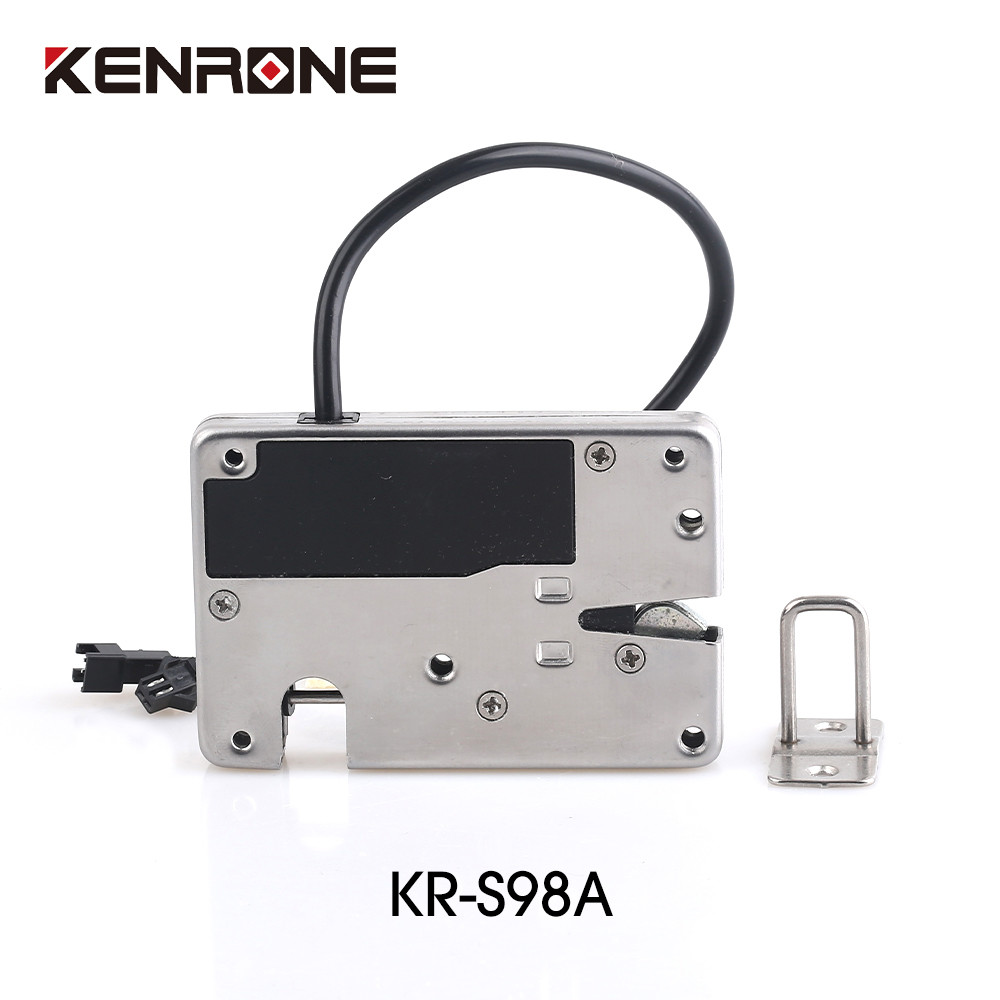

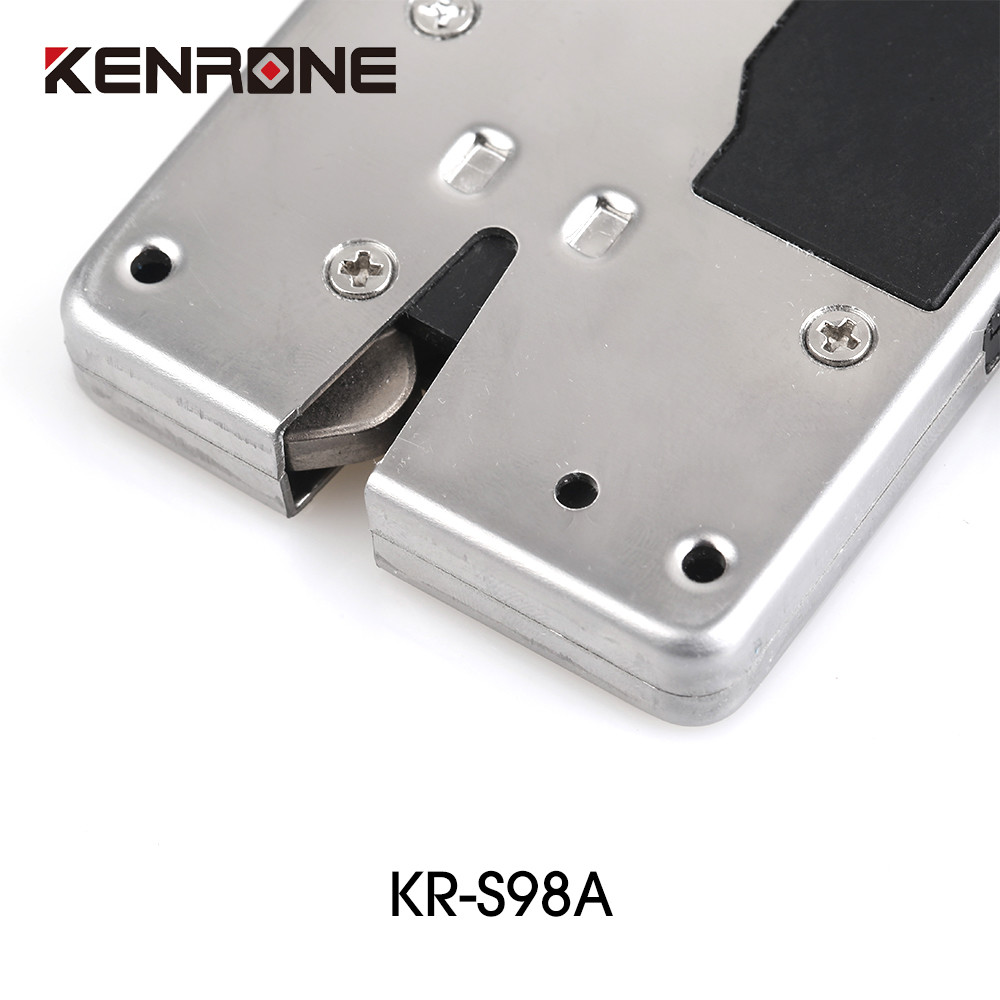

1.2W 24V Waterproof Electric Cabinet Lock 430 Stainless Steel
Product parameters:
| Model | KR-S98A |
| Product Name | Waterproof Electrical Lock |
| Size | 98*66*13.3 mm |
| Weight | 175 g |
| The material | 430 stainless steel+Zinc alloy lock tongue |
| Working voltage | DC8V~DC24V |
| Working current | 100mA@12V |
| Maximum power | 1.2W |
| Response time | < 300ms |
| Working temperature | -40℃ ~ +65℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 4KG~50KG |
| Test | Salt spray testing 48 hours |
| Usage | Delivery cabinet /Sauna locker/School locker/Gym locker/ Vending machine etc |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. Motor driven, more stable and lower power consumption support 8V-24V.
2. Deactivated 430 stainless steel lock shells, anti-force performance: 300kgs.
3. All electronic parts are protected in the sealed ABS box. IP66 Waterproof.
4. Built-in push block helps push the door, thrust can be adjusted.
5. Lock hook detection function.
6. Can be unlocked manually by the mechanical emergency lever in case of power failur.
7. AWG24 wires with PVC protecting tube.
8. Support customizing wires and connector.
Product Details:
Product Applications:
Our products KR-S98A electronic locker lock is used in a parcel locker, express locker, sauna locker, storage cabinets, etc.
Feel free to contact us for more information, we sincerely welcome your inquiry.
