Steel Metal Electrical Locker Lock Remote Control Cabinet Rotary Latch Solenoid Lock
Product parameters
| Model | KR-S6570 |
| Size | 65*70*18.2 mm |
| Product name | Metal Locker Lock |
| Weight | 288 g |
| Material | 304 Stainless steel |
| Working voltage | 12V/24V |
| Working current | 2.4A/1.2A |
| Maximum Power | 28W |
| Response time | Less than 550ms |
| Revolution speed | 4.5 Rev/s |
| Working humidity | 5% ~ 85%RH |
| Unlocking times | 500,000 times |
| Door weight | 0.5~10KG |
| Test | Salt spray testing 72 hours |
| Usage | storage cabinet; express locker; vending machine; gym locker |
| Static current (signal unlock) | <20uA |
| OEM | take up |
Product Main Features
1. High strength and steel construction to withstand high mechanical loads.
2. AWG24 wires with PVC protecting tube.
3. Compact latch housing minimizes space requirements and maintains a clean, concealed exterior look.
4. Internal Omron micro switch for latch open/close output signal, the 500,000-time operating cycle.
5. Convenient mechanical override enables manual release in the condition of a power outage.
6. Customers can customize wires and terminals.
7. Double emergency lever design.
More lock models show
| Models | +,-Power | Door magnetic detection | op Rod | Door weight | Energizing recommendations | Tensile strength |
| KR-S91 | YES | YES | Built-in | 4~50KG | 400ms~2s | 40kgf |
| KR-S98S | YES | Not having | Built-in | 4~50KG | 400ms~2s | 300kgf |
| KR-S66N | YES | Not having | External | 0.5~10KG | 400ms~2s | 270kgf |
| KR-S98C | YES | Not having | Built-in | 0.5~10KG | ＜800ms | 300kgf |
Product Applications

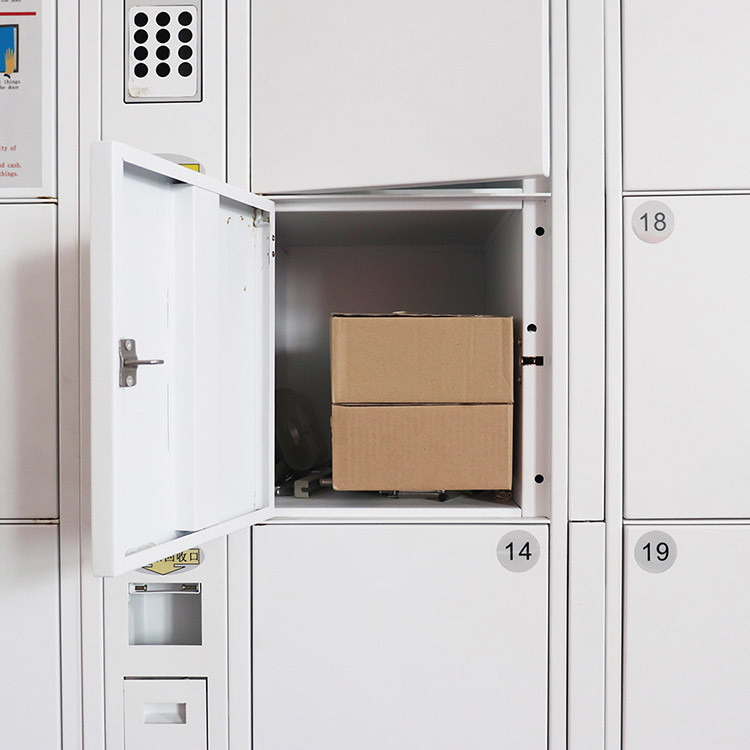

Our products KR-S6570 Electronic waterproof lock can be applied to storage lockers, express cabinets, parcel lockers, gym lockers, vending kiosk locker, etc.
