Professional Cabinet Lock Manufacturing Locker Lock Solution Provider
5 Years
| Ask Lasest Price | |
| Brand Name : | KERONG |
| Model Number : | KR-S98S |
| Certification : | CE/RoSH/FCC |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability : | 50,000 pieces per month |
| Delivery Time : | 5-15 days working time |

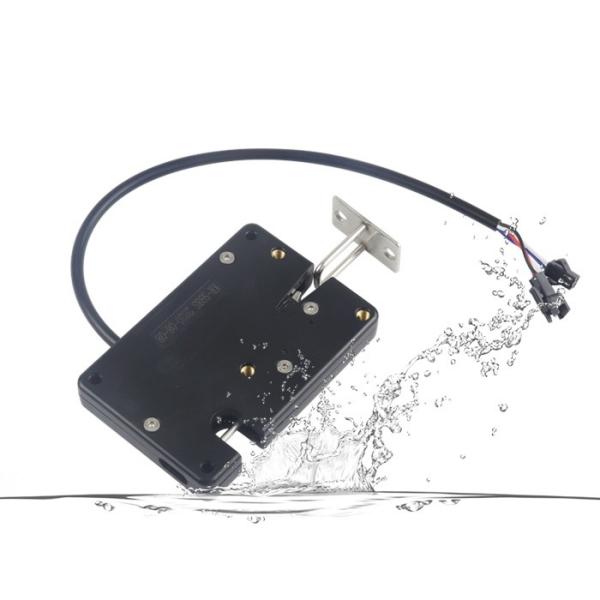

Electronic Rotary Latches Electric Motors Drive Mode
Main Features
1. Motor-driven, low power consumption, and stable.

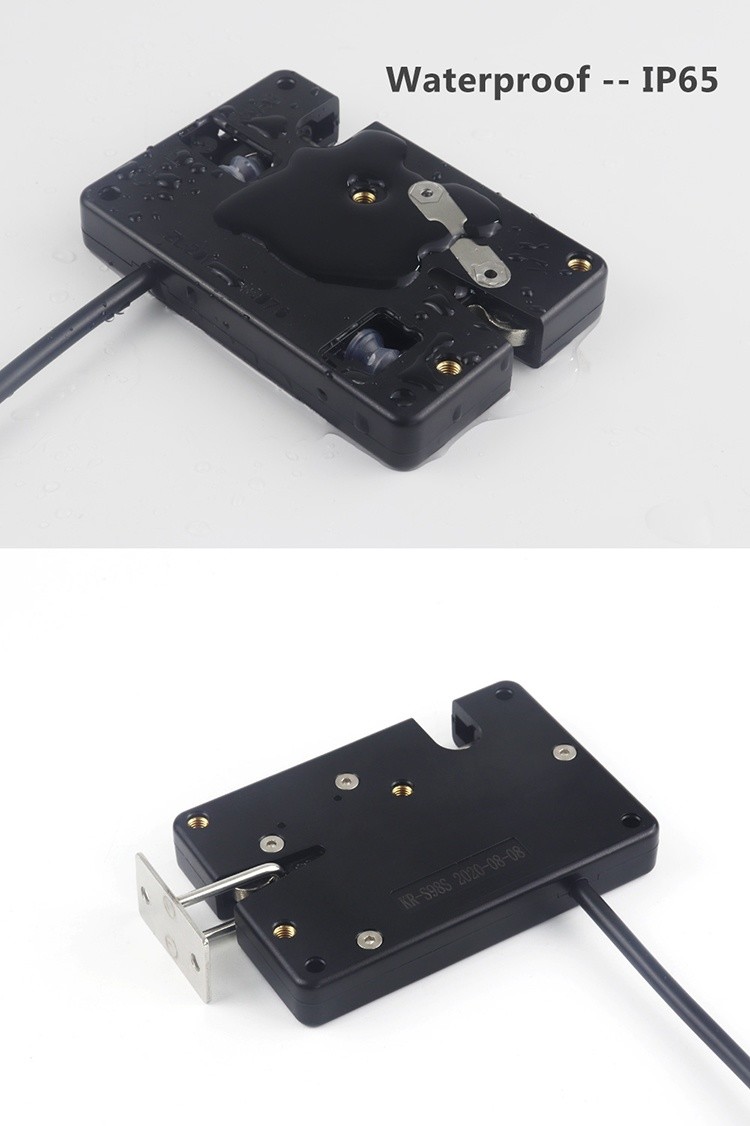

2. IP66. All electronic parts are protected in the sealed ABS box.
3. Omron micro detective switch from Japan with high quality and durability.
4. Outlet port description:
1) Terminal (input pin) red wire: positive power supply;
2) Terminal (input pin) black wire: negative power GND;
3) Terminal (input pin) blue wire: lock hook detection signal A terminal,
the switch signal can be set by the customer;
4) Terminal (input pin) white wire: the lock hook detection signal B terminal,
this switch signal can also be set by the customer;
6. Two emergency unlocking solutions for power and program failures.
7. AWG24 wires with PVC protecting tube.
8. Support customizing wires and connectors.
Product parameters
| Model | KR-S98S |
| Size | 98*66*14.5 mm |
| Name | ABS Waterproof Electronic Lock |
| Weight | 116g |
| The material of the lock body | ABS+PC |
| Working voltage | DC8V~DC24V |
| Working current | 220mA@10V |
| Maximum power | 2.2W |
| Response time | Less than 300ms |
| Working temperature | -40℃ ~ +65℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500000 times |
| Door weight | 4KG~50KG |
| Test | Salt spray testing 72 hours |
| Usage | lockers, subway storage lockers, item management lockers |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Details
Hot Tag: Electronic Rotary Latches, Motor Intelligent Cabinet Lock, Cabinet Lock
|
|
