    100mA Remote Control Pcb Board , RS485 Motor Control Board

    Ask Lasest Price
    Brand Name : KERONG
    Model Number : KR-CU48
    Certification : CE/FCC/ROSH
    Price : Agreeable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
    Supply Ability : 50,000 per month
    Delivery Time : 5-15 days working time
    • Product Details
    • Company Profile

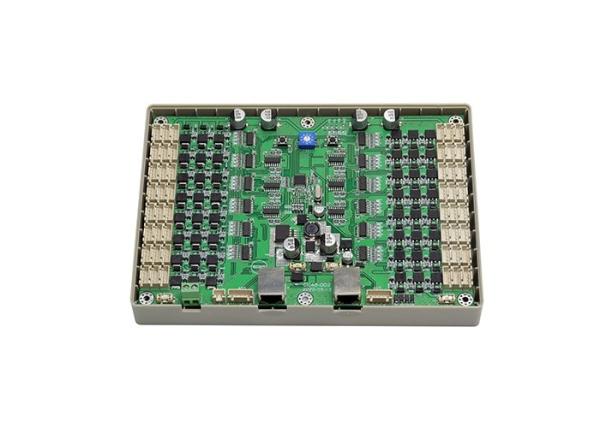

    100mA Remote Control Pcb Board , RS485 Motor Control Board


    RS485 Smart Locker Lock Electronic Locking System


    Product parameters

    ModelKR- CU48
    BrandKERONG
    DefinitionElectronic rotary latch controller
    FunctionReceive commands to control lock and feedback status
    DimensionL200*W140*H15mm
    MaterialPCB (Printed Circuit Board)
    The dimension of protecting the shellL210*W150*H35mm
    Microprocessor moduleSTM8S103K3T6 QFP32(P0.8mmBS7*7mm)
    Connector modelRJ45, 8P8C
    Working voltage12V~24V
    Stand-by power consumption60mA
    Dynamic power consumption200mA~3000mA
    Reaction timeLess than 1s
    Working temperature-25℃ ~ +65℃
    Working humidity5% ~ 95%RH
    CertificationCE; ISO9001; RoHS
    OEMAccepted

    Product Main Features

    1, For network communication. Transfer TCP/IP commands (from PC) to 485 formats (to CU)

    2, Open developed, you can design software completely as you want

    3, Support networking: WIFI and Bluetooth

    4, Can co-work with a computer, pad, Raspberry Pi

    5, Works well on IOS, Windows, and Linux

    6, High-quality modules, working stably

    7, With protect box, anti-dust

    8, Control 48-way lock, simple and practical


    Product Details

    The lock control board adopts an RS485 communication interface, supports a variety of electric control locks, supports lock signal feedback, supports 12V and 24V electric control locks, and the lock feedback mode can be configured by software, with independent PTC resettable fuses, and supports short circuit protection. , The protection current is 3A, providing configuration tool software, users can freely change the communication protocol and lock feedback type.

    Unique working mode

    100mA Remote Control Pcb Board , RS485 Motor Control Board

    100mA Remote Control Pcb Board , RS485 Motor Control Board


    Product Applications

    The lock control board is widely used in centralized control cabinets such as storage cabinets, letterboxes, storage cabinets, logistics cabinets, file cabinets, lockers, vending machines, mobile phone cabinets, shoe cabinets, etc. Widely used in schools, community logistics, hotels, factories, bathing centers, troops, banks, supermarkets, prisons, and other places.


    Hot Tag: PCBA Control Board, WiFi Signal Lock Control, Bluetooth Control PCB Board
