DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock

Shenzhen Kerong Industry Co., Limited
Contact Now
    Buy cheap DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock from wholesalers

    Buy cheap DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock from wholesalers
    • Buy cheap DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock from wholesalers
    • Buy cheap DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock from wholesalers

    DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock

    Ask Lasest Price
    Brand Name : KERONG
    Model Number : KR-S78
    Certification : CE/ROSH/FCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
    Supply Ability : 50,000 pieces per month
    Delivery Time : 5-15 days working time
    • Product Details
    • Company Profile

    DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock

    DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock


    Product parameters

    ModelKR-S78
    Size78*78.3*20.3 mm
    Product nameSharing Cabinets Smart Locks
    Weight with lock hook258g
    Material304 Stainless steel+ABS+PC
    Working voltage8~24V
    Working current60mA@12V
    Power consumption0.72W
    Response timeLess than 600ms
    Revolution speed4.5 Rev/s
    Working humidity5% ~ 85%RH
    Unlocking times500,000 times
    Door weight4KG~50KG
    TestSalt spray testing 72 hours
    ApplicationsIntelligent self-collection cabinet, smart bag cabinet
    Static current (signal unlock)<20uA
    OEMtake up

    Product Main Features

    • Motor/servo-driven, wide working voltage range: 8~24V. Low power consumption.
    • It is recommended that the user's power supply unlocking time is greater than 500ms (uninterrupted).
    • Omron micro detective switch from Japan, high quality, and durability.
    • Outlet port description:
    1) Terminal (input pin) red wire: positive power supply;
    2) Terminal (input pin) White wire: negative power GND;
    3) Terminal (input pin) blue wire: lock hook detection signal A terminal, the switch signal can be set by the customer;
    4) Terminal (input pin) white wire: the lock hook detection signal B terminal, this switch signal can also be set by the customer;
    • Mechanical emergency lever can be unlocked manually in case of power failure.
    • AWG24 wires with PVC protecting tube.
    • Support customizing wires and connectors.

    Product Details

    DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock

    DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock

    Our Advantages

    1. We are a manufacturer, OEM/ODM service has the advantage.

    2. The products are experienced and recognized by the market, and exported to dozens of countries, such as the United States, Sweden, Arabia, Korea, etc.

    3. Our factory has 5000 square meters with high volume production capacity.

    4. Price and quality are guaranteed.

    5. 7*24 hours a day technical support consultation.

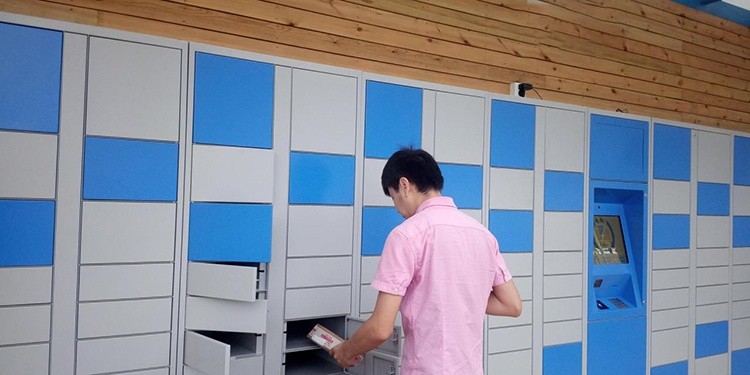

    Product Applications

    DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock


    Hot Tag: Motor Electric Parcel Locker Lock, 0.72W Electronic Cabinet Lock, Courier Cabinet Lock
