Brand Name : | KERONG |
Model Number : | KR-S78 |
Certification : | CE/RoHS/FCC |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
Supply Ability : | 50,000 pieces per month |
Delivery Time : | 5-15 days working time |
Keyless Mechanical Electric Lock Heavy Duty Smart Concealed Cabinet
Drawer Locks
Product Features
The geared motor drive distinguishes the KR-S78 from the electromechanical latch that competes with electromagnetic drives-lower power requirements and higher load capacity.
1. AWG24 wires with PVC protecting tube
2. Double emergency lever design
3. High-strength steel structure that can withstand high mechanical loads
4. The compact lock housing minimizes space requirements and maintains a clean and concealed appearance
5. Mechanical override function can manually unlock in the situation of power failure
6. Internal Omron micro switch for latch open/close output signal, and working life is 500,000 times
7. There are five working signal modes to meet different needs and
support hook detection
Product parameters
Model | KR-S78 |
Size | 78*66.2*20.3mm |
Product name | Keyless Mechanical Lock |
Weight | 199 g |
Material | 304 Stainless steel+ABS+PC |
Working voltage | 8~24V |
Working current | 60mA@12V |
Power consumption | 0.72W |
Response time | Within 300ms |
Revolution speed | 4.5 Rev/s |
Working humidity | 5% ~ 85%RH |
Unlocking times | 500,000 times |
Door weight | 4KG~50KG |
Test | Salt spray testing 72 hours |
Usage | logistics cabinet; freezer; gym locker, etc. |
Static current (signal unlock) | <20uA |
OEM | Accepted |

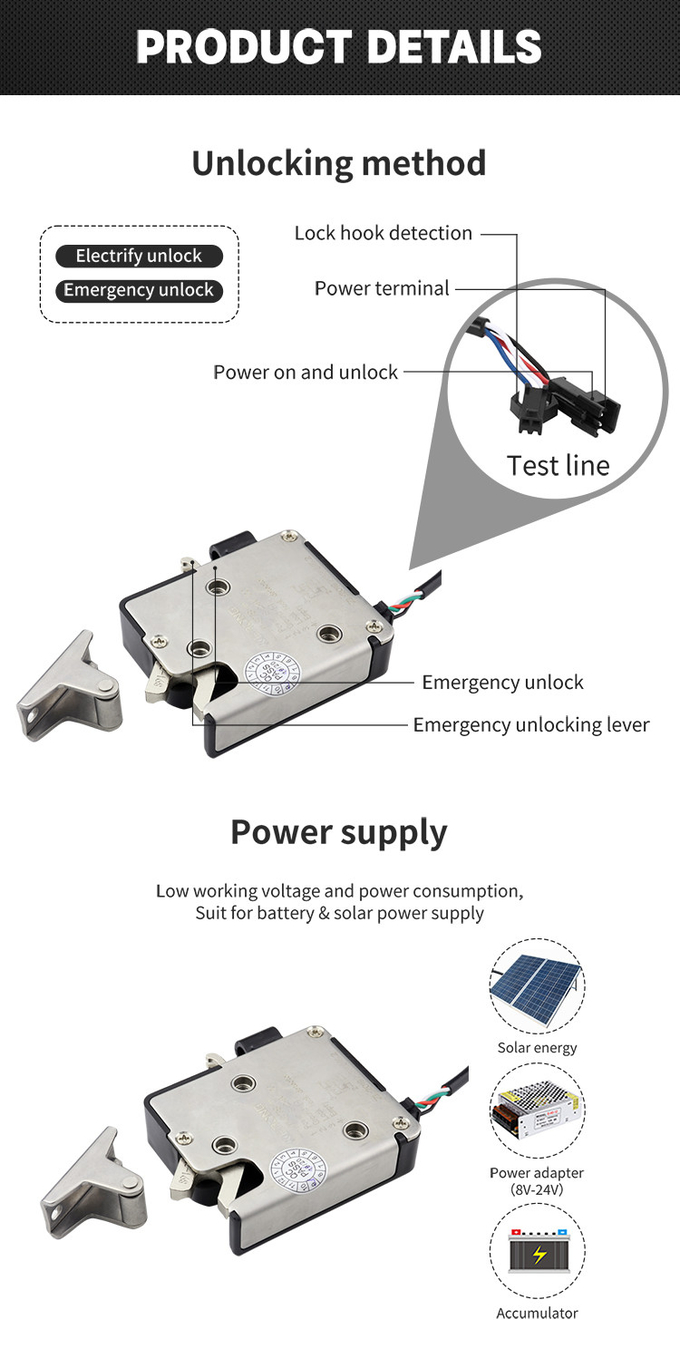

Product Details
Feel free to contact us for more information, we sincerely welcome your inquiry.
