Professional Cabinet Lock Manufacturing Locker Lock Solution Provider
5 Years
| Ask Lasest Price | |
| Brand Name : | KERONG |
| Model Number : | KR-S66N |
| Certification : | CE/FCC/RoSH |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability : | 50,000 pieces per month |
| Delivery Time : | 5-15 days working time |
28W Electric Cabinet Lock , Shockproof Cabinet Safety Locks
Our products KR-S66N electronic cabinet locks are applied in courier cabinets, gym cabinets, vending kiosk locker, centralized control ark express cabinets, etc
Product parameters
| Model | KR-S66N |
| Size | 67*59*13.5 mm |
| Name | Safe Shockproof Cabinet Lock |
| Weight with lock hook | 182 g |
| The material of lock body | SUS430 |
| The material of lock bolt | Zinc alloy nickel plating |
| Color | Silver |
| Working voltage | 12V/24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Usage | Lockers, vending machines, logistics cabinets, mail cabinets, gym cabinets, etc. |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features
1. Solenoid drove, support 12V & 24V.
2. Lock shells are made from low carbon steel so that its anti-force performance: 270kgs.
3. Omron micro detective switch from Japan with 500,000-time working life.
4. Mechanical emergency lever, can be unlocked manually when power failure.
5. AWG24 wires with PVC protecting tube.
6. Customers can customize wires and connectors.
7. The thrust is bigger than KR-S66, with a push lever to help push the door open.
Product Details
A variety of locking hooks are available
Different options of locking hooks, you can also customize the other size.
| Models | Base | Thickness | Height | Weight |
| A | Flat base | 3.0mm | 30mm | 11.0g |
| B | Flat base | 3.0mm | 26.5mm | 10.5g |
| C | Arch base | 3.0mm | 26.5mm | 10.8g |
| D | Arch base | 3.5mm | 25mm | 11.8g |
| E | Arch base | 3.0mm | 31.5mm | 11.4g |
| F | Arch base | 3.0mm | 26.5mm | 10.5g |
| G | Arch base | 3.5mm | 30mm | 11.0g |
How does it work?

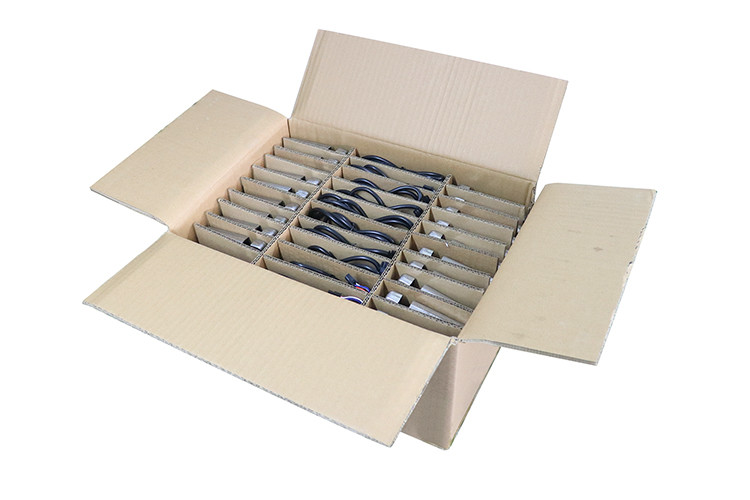

Packaging & Delivery
Carton: 50pcs/CTN or customized according to customer's requirement
Hot Tag: electrical cabinet lock; electronic lock for cabinet; lock for vending machine
|
|
