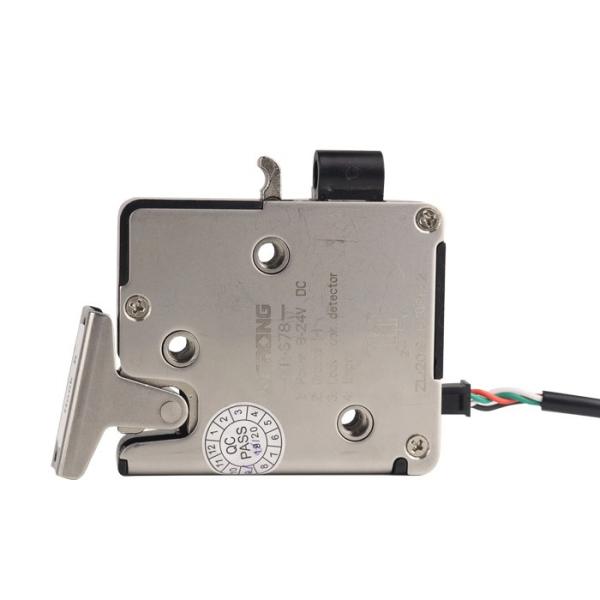

    60mA 4.5Rev/S Electric Motor Lock For Remote Control Cabinet

    Ask Lasest Price
    Brand Name : KERONG
    Model Number : KR-S78
    Certification : CE/RoHS/FCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
    Supply Ability : 50,000 pieces per month
    Delivery Time : 5-15 days working time
    • Product Details
    • Company Profile

    60mA 4.5Rev/S Electric Motor Lock For Remote Control Cabinet

    60mA 4.5Rev/S Electric Motor Lock For Remote Control Cabinet


    Product parameters

    ModelKR-S78
    Size78*78.3*20.3 mm
    Product nameMotor Driven Cabinet Locks
    Weight with lock hook258g
    Material304 Stainless steel lock
    Working voltage8V-24V
    Working current60mA@12V
    Power consumption0.72W
    Response timeLess than 600ms
    Revolution speed4.5 Rev/s
    Working humidity5% ~ 85%RH
    Unlocking times500,000 times
    Door weight4KG~50KG
    TestSalt spray testing 72 hours
    ApplicationsDelivery cabinet /Sauna locker/School locker/Gym locker/ Vending machine etc
    Static current (signal unlock)<20uA
    OEMYES

    Product Main Features

    1. Motor/servo-driven, wide working voltage range: 8~24V. Low power consumption.
    2. It is recommended that the user's power supply unlocking time is greater than 500ms (uninterrupted)
    3. Omron micro detective switch from Japan, high quality, and durability.
    4. Outlet port description:

    1) Terminal (input pin) red wire: positive power supply;
    2) Terminal (input pin) White wire: negative power GND;
    3) Terminal (input pin) blue wire: lock hook detection signal A terminal, the switch signal can be set by the customer;
    4) Terminal (input pin) white wire: the lock hook detection signal B terminal, this switch signal can also be set by the customer.
    5. Mechanical emergency lever can be unlocked manually in case of power failure.
    6. AWG24 wires with PVC protecting tube.
    7. Support customizing wires and connectors.

    Product Details

    60mA 4.5Rev/S Electric Motor Lock For Remote Control Cabinet

    60mA 4.5Rev/S Electric Motor Lock For Remote Control Cabinet


    60mA 4.5Rev/S Electric Motor Lock For Remote Control Cabinet
