Smart Electromagnetic Cabinet Door Lock Electric Bolt Lock
parameters
| Model | KR-S6570 |

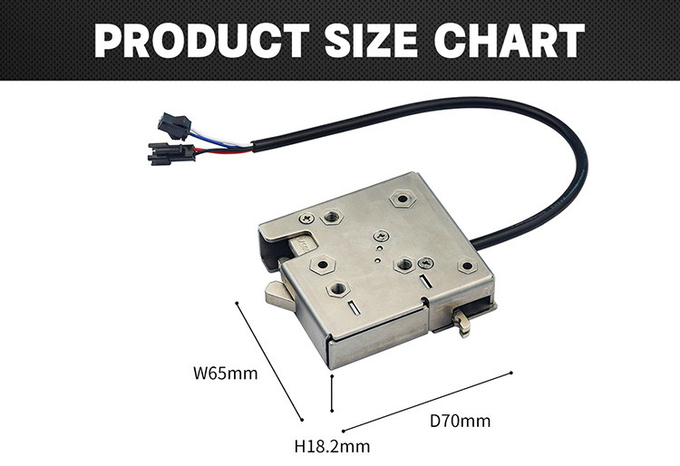

| Size | 65*70*18.2 mm |
| Product name | Electric Bolt Lock |
| Weight | 288 g |
| Material | 304 Stainless steel |
| Working voltage | 12V/24V |
| Working current | 2.4A/1.2A |
| Power consumption | 28W |
| Response time | Less than 550ms |
| Revolution speed | 1.0 Rev/s |
| Working humidity | 5% ~ 85%RH |
| Unlocking times | 500,000 times |
| Door weight | 0.5~10KG |
| Test | Salt spray testing 72 hours |
| Usage | storage locker; cabinet; logistic locker; vending machine; deposit locker |
| Static current (signal unlock) | <20uA |
| OEM | take up |
Main Features
1. High strength & steel construction Operates against high mechanical loads
2. Compact latch housing minimizes space requirements and maintains a clean, concealed exterior look
3. Internal Omron micro switch for latch open/close output signal, 500,000-time working life
4. Convenient mechanical override enables manual release during a power failure
5. Support customizing wires and connectors
6. Double emergency lever design
7. AWG24 wires with PVC protecting tube
Product Details
Product Applications
KR-S6570 is practical for all kinds of storage cabinets, such as logistics parcel cabinets, mechanical and electrical cabinets, large shoe cabinets, etc., bringing convenience to life.
Feel free to contact us for more information, we sincerely welcome your inquiry.
