430 Stainless Steel Electric DC24V Post Office Box Lock Solenoid
Product Main Features:
1. Solenoid is driven, support 12V & 24V.
2. Lock cases are made from low carbon steel so that its anti-force performance: 270kgs.

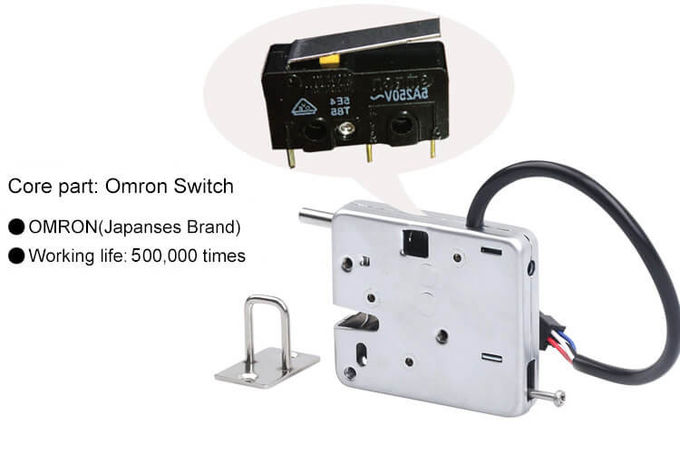

3. Japanese Omron detective switch with 500,000-time working life.
4. AWG24 wires with PVC protecting tube.
5. Mechanical emergency lever, can be unlocked manually when power failure.
6. Customers can customize wires and connectors.
7. The thrust is bigger than KR-S66, With a push lever to help push the door open.
Product parameters:
| Model | KR-S66N |
| Size | 67*59*13.5 mm |
| Name | Office Box Locker Lock |
| Weight with lock hook | 182g |
| The material of lock body | SUS430 |
| The material of lock bolt | Zinc alloy nickel plating |
| Color | Silver |
| Working voltage | 12V/24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Usage | Lockers, vending machines, logistics cabinets, postal cabinets, gym cabinets, etc. |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Details
Product Size
Product Applications
Our products KR-S66N electronic locker locks are used in postal cabinets, parcel cabinets, vending kiosk locker, logistics cabinets, storage cabinets, etc.
Cautions
1. It can not be waterproof, so please avoid excessive directly contact with water.
2. The structure inside is complicated, so please avoid unprofessional disassembly.
3. Do not drill holes in the relay plate or lock body.
Feel free to contact us for more information, we sincerely welcome your inquiry.
