Professional Cabinet Lock Manufacturing Locker Lock Solution Provider
5 Years
| Ask Lasest Price | |
| Brand Name : | KERONG |
| Model Number : | KR-S1408 |
| Certification : | CE/RoSH/FCC |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability : | 50,000 pieces per month |
| Delivery Time : | 5-15 days working time |
Solenoid Cabinet Lock Electronic Flush Mount SUS 430 With Zinc Alloy Nickel Plating
Product parameters

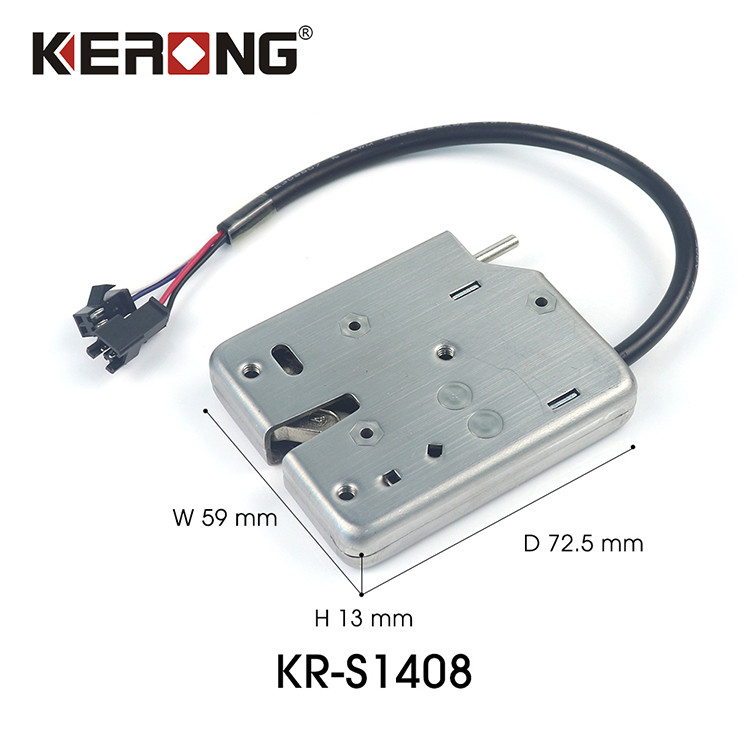

| Model | KR-S1408 |
| Size | 72.5*59*13 mm |
| Name | Mechanical Solenoid Lock |
| Weight with lock hook | 176g |
| The material of lock body | 430 stainless steel |
| The material of lock bolt | Zinc alloy nickel plating |
| Working voltage | DC12V/DC24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Usage | storage cabinet; express locker; gym locker |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features
1. Low carbon stainless steel lock housing, resistance performance:
240kgs.
2. Lock hook detection function, With push lever to help push the
door open.
3. Japanese Omron micro detective switch, working life:
500,000-time.
4. Solenoid driven, support 12V & 24V.
5. Can be unlocked manually by a mechanical emergency lever in case
of power failure.
6. AWG24 wires with PVC tube protects the wirings.
7. Connectors and wires can be customized based on actual
conditions.
Product Details
Hook Model
| Model | Base | Thickness | Height | Weight |
| A | Flat | 3.0mm | 30mm | 11.0g |
| B | Flat | 3.0mm | 25mm | 10.5g |
| C | Arch | 3.0mm | 26.5mm | 10.8g |
| D | Arch | 3.5mm | 26.5mm | 11.8g |
| E | Arch | 3.0mm | 31.5mm | 11.4g |
| F | Arch | 3.0mm | 26.5mm | 10.5g |
| G | Arch | 3.5mm | 30mm | 11.0g |
Product Applications

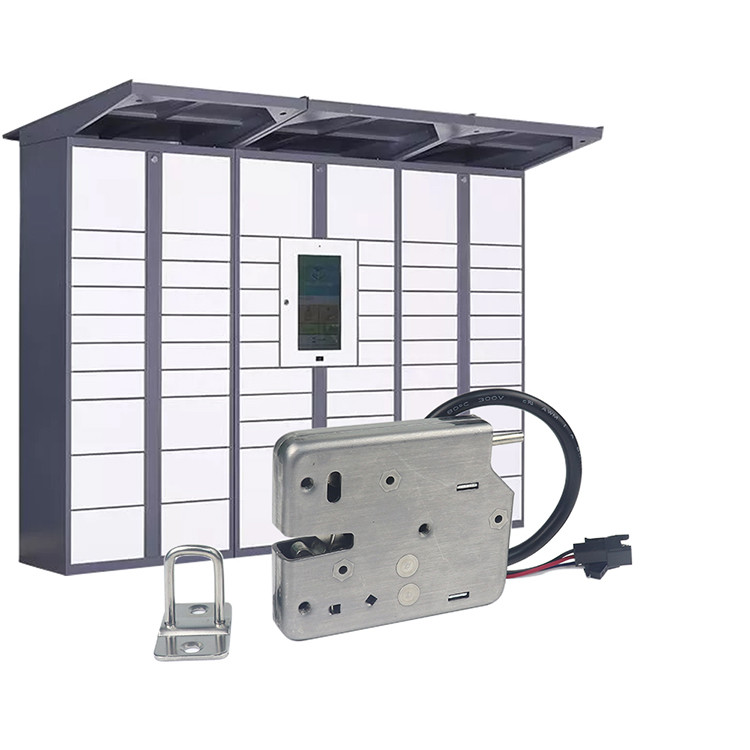

Our products KR-S1408 electronic solenoid cabinet lock is used in logistics cabinets, vending kiosk locker, postal locker, storage cabinets, etc.
Feel free to contact us for more information, we sincerely welcome your inquiry.
Hot Tag: Solenoid Cabinet Lock, Wholesale, China, Suppliers
|
|
