Electronic DC 12V Parcel Locker Magnetic Rotary Latches
Product parameters
| Model | KR-S99S |

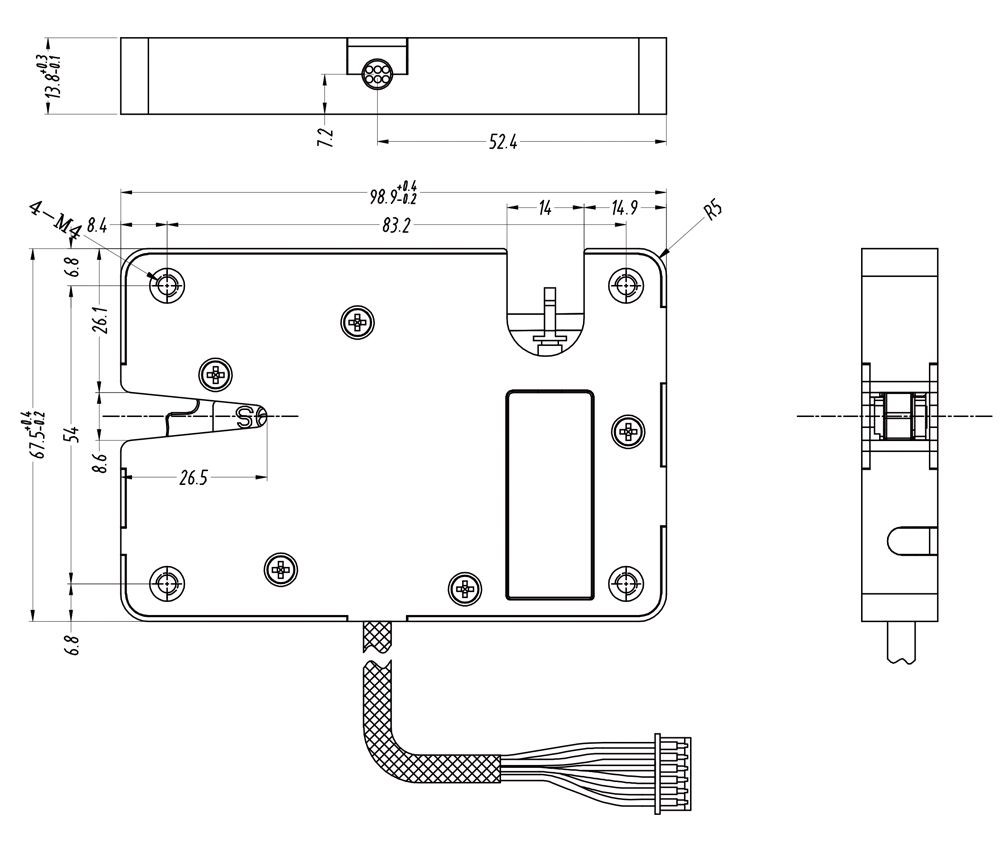

| Size | 98.9*67.5*13.8 mm |
| Name | 12V Magnetic Rotary Latches |
| The material of the lock body | 430 Stainless steel+PA+GF |
| The material of the lock bolt | Zinc alloy nickel plating |
| Working voltage | DC12V~DC24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Usage | locker; express cabinet; vending machine; gym lockers |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features
1. Electromagnet drive, support 12V & 24V.
2. Lock hook detection function.
3. 430 stainless steel shrink shell is more durable, resistance performance: 300kgs.
4. Can be waterproof. All electronic parts are protected in the sealed ABS box.
5. Built-in push block helps push the door, thrust can be adjusted.
6. Can be unlocked manually in the condition of power failure by mechanical emergency lever.
7. AWG24 wires with PVC protecting tube.
8. Push door detection function.
9. Customers can customize terminals and wires.
Product Details
Product Applications
Our products KR-S99S electronic solenoid locker lock are used in express cabinets, vending machine, gym locker, storage cabinets, etc.

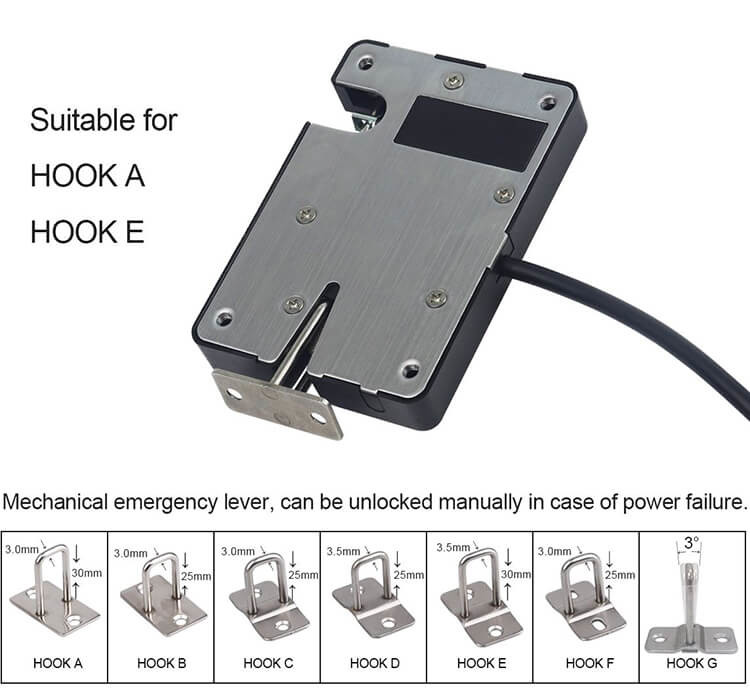

Different Lock Hook Options
| Model | Base | Thickness | Height | Weight |
| A | Flat | 3.0mm | 30mm | 11.0g |
| B | Flat | 3.0mm | 25mm | 10.5g |
| C | Arch | 3.0mm | 26.5mm | 10.8g |
| D | Arch | 3.5mm | 26.5mm | 11.8g |
| E | Arch | 3.0mm | 31.5mm | 11.4g |
| F | Arch | 3.0mm | 26.5mm | 10.5g |
| G | Arch | 3.5mm | 30mm | 11.0g |
